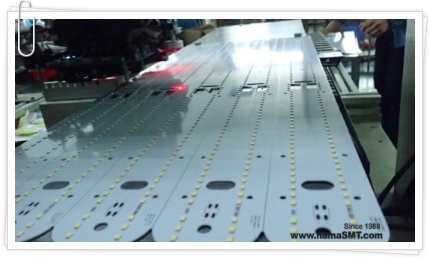

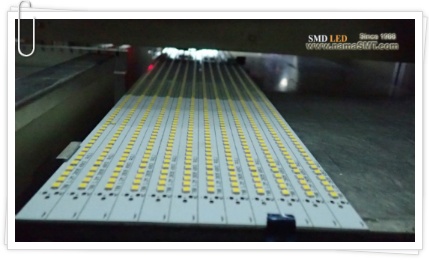

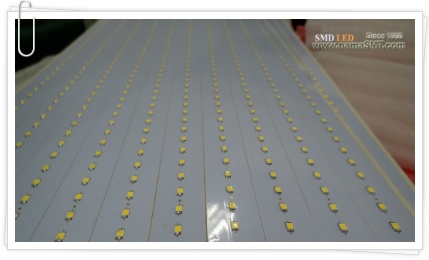

£ï Assembles LED boards up to 1200mm / 1800mm (opt) long in a single pass
£ï Positive air puffing at the pick -up nozzle ensures release of 'sticky' LED components during placement
£ï Large working platform allows multiply PCB production in one stage
£ï Uninterrupted production by auto-selection for alternativewhen feeder is empty.
£ïThe SMD placement machine LD812 has been specially designed for use in the LED PCBs medium and high production quantities . The machine supports the processing of printed circuit boards with a length of up to 1200 mm (optionally up to 1800 mm ) .
£ïControlled air surges at the pick-up nozzles ensure the release of the " sticky " LED components during placement . Using the auto- selection system can be controlled to alternate feeder for empty indents without interruption to produce . In addition, allow the feeder band connections to minimize production interruptions.
£ïHeavy welded frame ensure precise placement even at high speeds . The multi- head support achieved placement rates up to 15,000 / 18,000 ( 6 head ) Componets / Hour.
£ïThe model is equipped with an optical centering system that allows image processing directly on the placement head "Vision on the Fly" . Equipped with a dual conveyor system and intelligent software a high placement rate and efficiency in the pick -and-place process is guaranteed.
