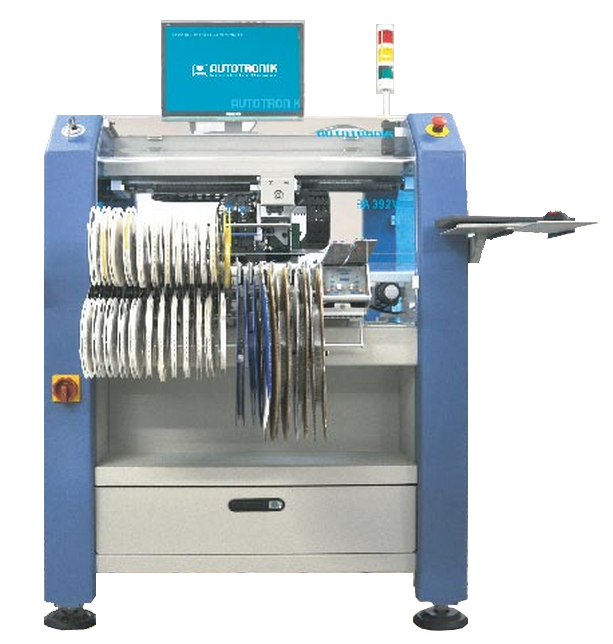

BA392V
상품명 [Pick and Place]
392V
385 동일기능 작업범위 넓음
제조사 Autotronik-SMT
+ Short Tape
+ Solder Dispenser
+ BA392V Catalog

  SUMMARY


Large 600 mm x 350 mm placement area


Suitable for 160 intelligent Auto Tape Feeder


High Accuracy and high Flexibility for 01005, 0201, 0402, 0603,

  SOIC, PLCC, BGA, μBGA, CSP, QFP, up to fine-pitch 0.3mm


Smart Feeder System provides Automatic feeder position checking


Automatic component counting, Production data Traceability

Perfect for small & medium volume production


COGNEX® Alignment System “Vision on the Fly”


Bottom Vision Alignment System for fine pitch QFP & BGA


Built in Camera System with Auto Smart Fiducial Mark Learning


Dispenser system


Vision Inspection before and after production


Windows XP Software


Universal CAD Conversion


Placement rate: 6,400 cph


Tray Handler access up to 10 Waffle Trays

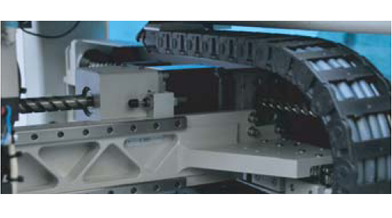

AUTOTRONIK BA392 features high-precision, direct-drive ball screw and linear encoder technology in the X and Y axes, contributing to its 30 µm, 3 Sigma placement accuracy. With high-power AC servo motors allowing placement rates approaching 6400 cph.



With feeder bases on all four sides, BA392 has maximum 8mm smart type feeder capacity of 160, and 600 mm x 350 mm of payload area can be shared by PCBs and waffle trays. Placement area increases to 630 mm x 350 mm with feeder bases mounted on only the front and rear of the system and an in-line conveyor installed.BA392 with stand-alone or In/Out conveyor configuration is suitable for any In-Line or "Work Cell" manufacturing environment.

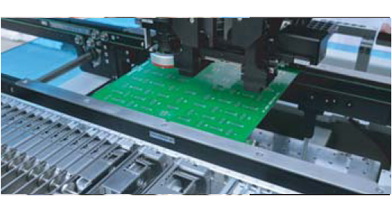

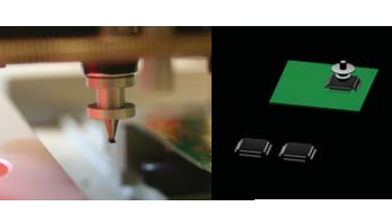

The head-mounted, upward-aimed cameras with Cognex® vision processing and programmable
illumination of BA392 allow easy set-up for a wide range of SMDs,including odd form components and BGAs.Base mounted cameras with a wider optical range and diagonal split-vision image processing can even be used for alignment of large components up to 150 mm x 100 mm.
