ǰ Small Reflow
ǸſϷ
"ǸſϷ" Ǿϴ.




          ó 010.8809.0883

          ǸŰ  ƯǸ -30%

             ˼ μ 1

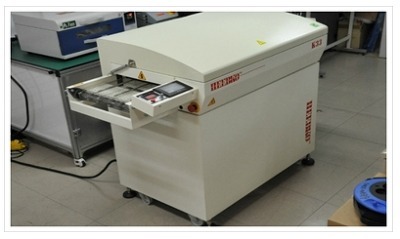

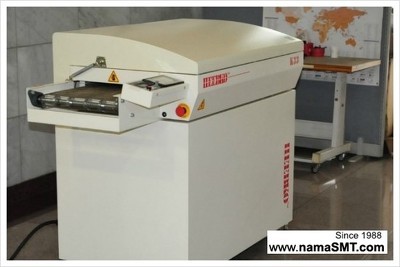

K33 Reflow  SMD ǰ Test Reflow

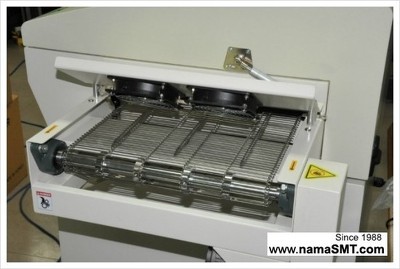

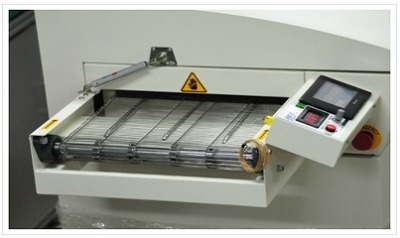

Conveyor Mesh Ǿ ֽϴ..

Conveyor  Width



Max 350mm

Conveyor Height



Max 27mm

Conveyor Speed



0 ~ 150mm / min











Ư ¡ : K33

Pb Free

K33. 3 zone  Reflow Oven  Heating Zone 950mm µ Ǿ ִ. Max 300'c Hot Air Welding -ǰ ִ.

µ Profile

Unit

µ Profile .м. System ⺻ Ǿ Data ǰ.  PCB Solder Land κ µ ǽð ȭ鿡 Display Ͽ ش///ð , ̷ ſ ϴ.

Low power

K33  Power 220V  single Ŀ ϴ.  ִ 12A  Normal =3.5A  Һ , ܺη ս ģȯ ̴.

































 Specification Balance Table of K33

No   Description

K33

Remark



1

Heating Zone

Top 3

under 3

Each Heat zone

Temperature control



2

Heating

Air Convection

All zone Convection



3

Heating Chamber Length.

 950mm





4

Work width Height. mm

 350 / 25mm

Component Height

max 30mm



5

Temperature Range

 0 ~ 300c



6

Conveyor Speed

0.~ 150 cm/Min





7

Conveyor type

Mesh

Finger conveyor (op)



8

Temperature Profiler

1 x channel





9

Control Key

LCD Touch Panel

w. Temperature Profile



10

Cooling

2 x Fan Cooling

Top under conveyor



11

Power

220V Single

50/60Hz



12

Consumption

12A

At max power



13

Dimension (W.D.H)

160x73x100cm

Base Cabinet

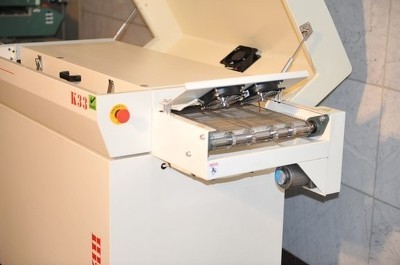

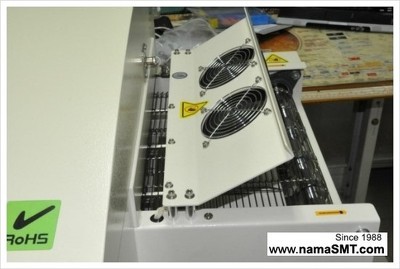

        Chamber 2 Door Ǿ ִ

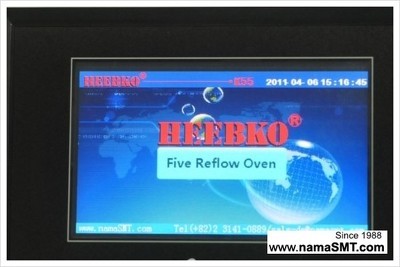

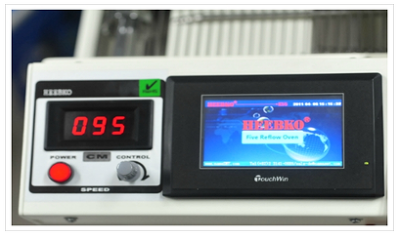

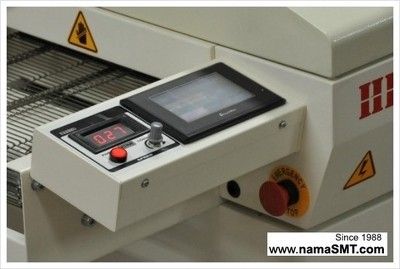

                  LCD Touch dzڷ Ǿ ֽϴ



µ ȭϷ ⺻ Ǿ ִ. 1 Channel
