º» 110 Solder Printe´Â ¾î¶°ÇÑ Frameµµ ȣȯÀÌ °¡´ÉÇÑ Manual Printer ÀÔ´Ï´Ù.
¾ç»ê¿ë Frameµµ °íÁ¤ÀÌ °¡´ÉÇϸç, ¼öµ¿ ÇÁ¸°ÅÍ¿¡¼ ÀÛ¾÷ ȤÀº ÀÚµ¿ ÇÁ¸°ÅÍ¿¡¼
ÀÛ¾÷ ½Ã ÇÁ·¹ÀÓ È£È¯¿¡ ´ëÇÑ ¹®Á¦ ¾øÀÌ Univeral ÇÏ°Ô »ç¿ë °¡´ÉÇÑ ÀåºñÀÌ´Ù.
Proto type ȤÀº ¾ç»ê Àü PP »ý»êÀ» ÇÏ´Â ¿ëÀ¸·Î ÀûÇÕÇÏ´Ù.
¼¼ºÎ »çÇ׿¡ ´ëÇÏ¿© Çϱ⠳»¿ëÀ» Âü°í ÇϽñ⠹ٶø´Ï´Ù.
Àû¿ë °øÁ¤ : ¿¬±¸°³¹ß / ¼Ò·® ´ÙÇ°Á¾ / PP »ý»êÀ» À§ÇÑ ¼Ö´õ ÇÁ¸°Æà / Big Size ¼Ö´õ ÇÁ¸°Æà °øÁ¤ ÀûÇÕ.

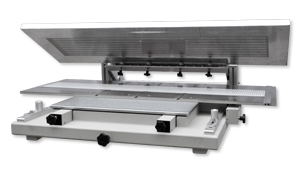

110 Manual Stencil Printer Key Features
- The ideal choice for low-volume, high repeatability stencil printing of large boards.
- Especially suitable for prototype printing of LED panels and first-article runs.
- Expansive work area accepts 610 x 610 mm single-sided or double-sided PCBs.
- Larger boards to 610 x 1200 mm optional.

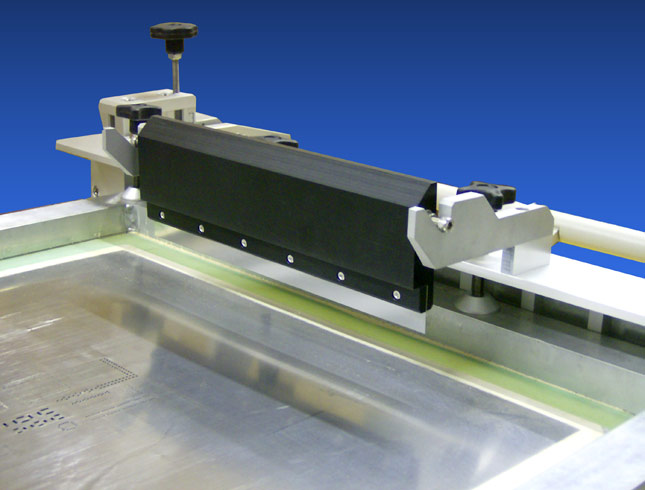

- 250 mm handheld metal squeegee included.
- Underside magnetic support pins facilitate fast changeover.
- Tool-free, self-locking, micro-adjustment in X, Y, Z and theta.
- Accepts screw mounted or clamp-type stencil frames.
- Adjustable registration hardware included for setup by edge-mounting or tooling pin.
- Counter-balanced, user adjustable, easy-lift frame.
- Heavy-duty cast aluminum base provides exceptional stability.
SUMMARY
![](http://www.borison.com/uploads/allimg/130315/BS110-I4-1.jpg)
Precise, reliable and easy-to-usePrecise, reliable and easy-to-use
Autotronik stencil printer is ideally suitable for the needs of prototype
and low-to-medium volume production.
![](http://www.borison.com/uploads/allimg/130315/BS110-I4-2.jpg)
Large print area capability
The large print area capability allows printing up to 610 mm x 610 mm.
It accepts standard SMT frame sizes from 300 x 300 to 736 x 736 mm.
Both obverse and reserve sides of screen are also applicable.
![](http://www.borison.com/uploads/allimg/130315/BS110-I4-3.jpg)
High repeatabilityIn order to provide fast print alignment and high
repeatability, the X, Y and Theta adjustment are self-locking.
The highly functional design provides fine pitch capability for boards
with registration repeatability +/- 0.02 mm.
![](http://www.borison.com/uploads/allimg/130315/BS110-I4-4.jpg)
Ready for double-sided PCBLarge print area capability
The PCB board is supported by a universal frame holder, no extra tool
is needed for double-sided printing.
The ease universal frame holder also allows the fast stencil and screen
mounting and removal.
EASY SET UP
![](http://www.borison.com/uploads/allimg/130315/BS110-I2-1.jpg)
Step 1 Install the stencil frame.
* Support frame types: Screw lock frame or Clamp frame.
![](http://www.borison.com/uploads/allimg/130315/BS110-I2-3.jpg)
Step 2 Set up the PCB board
![](http://cfile235.uf.daum.net/image/2659BF43552536452E496E)
´©±¸³ª ½±°Ô ¼Ö´õ ÇÁ¸°Æà ÀÛ¾÷
![](http://cfile218.uf.daum.net/image/2307B44355253647108A78)
PCB Guide Plate°¡ ÀÖ¾î °í Ç°Áú °¡´É ¼Ö´õ ÀÛ¾÷ °¡´É
![](http://cfile226.uf.daum.net/image/2373A943552536481D756E)
X.Y.Z.DÃø ¼¼¹Ð Á¶Àý °¡´É
![](http://cfile201.uf.daum.net/image/2202E0435525364913976A)
ÇÁ¸°ÅÍ Ã»¼Ò ´ë±â ½Ã Squeegee Holding Station
![](http://cfile225.uf.daum.net/image/2774B2435525364B1C78F1)
Èĸé ÁÂ/¿ì Àü¸é ÁÂ¿ì ³ôÀÌ Á¶Àý °¡´É
![](http://cfile213.uf.daum.net/image/271BD23E5525364D2A0A7D)
°£ÆíÇÏ°Ô PCB Frame °íÁ¤ ÀåÄ¡
|
