Statest 실시간 발생되는 바탁. 환경을 측정 PC 분석하는 장비이다
상품명 ESD Measuring instruments
제조사 STS






STATEST Visualizer with Fieldmeter 13S-DZ3


STATEST Visualizer with Fieldmeter 13S-PFM-711A



Analyse electrostatic processes !
The Statest Visualizer is a 12-bit A/D converter with special software for the simple analysis of electrostatic processes.


All field strength meters and charged plate monitors with an analog

output can be connected to it.

The Visualizer is especially suited for measuring charges on persons (walking tests). The test results are automatically evaluated according to IEC 61340-4-5.


The device can also be used for monitoring charges on machines etc. and features additional evaluation functions, such as the decay time of ionizers.

Other measuring instruments with an analog output (such as hygrometers) can be added to the software.

The recorded data can be saved graphically as bitmap file (*.jpg) or in a Microsoft Excel table for further processing.


Technical data :

  • A/D converter: 12-bit
  • Signal input: Maximum ±5V (BNC or 4mm Banana-plugs)
  • Measuring intervals: 1ms, 10ms, 100ms, 1s, 10s, 1min, 10min, 1h
  • Power supply: 9V battery
  • Connection: Serial interface RS 232 or USB
  • Compatibility: Windows 2000, XP, Vista, Win 7

The Visualizer is supplied with a standards-conformant hand-held electrode complete with measuring cable, serial interface cable and a USB adapter for connection to a PC or laptop.

13S-4040 Statest Visualizer without Fieldmeter.

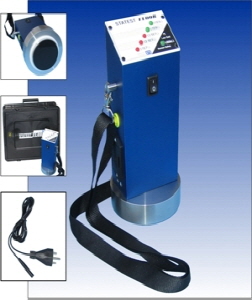

 STATEST FLOOR      Qick Tetster "Statest Floor"




STATEST FLOOR Approve a complete Workstation in less than 30 seconds !

The STATEST FLOOR is designed for fast, standard conformant (IEC 61340-5-1 / ANSI/ESD S20.20) testing of conductive floor coverings, table mat's, chairs and trolleys. The adjustable nylon carrying strap ensures a relaxed, upright posture, without the need to bend over, when working with the device.
System inspections (shoes-flooring) are also quick and easy.

Technical data :

  • Measuring ranges: ≤1x109Ω, ≤1x108Ω, ≤3.5x107Ω, ≤1x107Ω, ≤1x106Ω
  • Accuracy: -0%, +5% (±10% for the range 1x109Ω)
  • Other displays: Personal safety ≥5x104Ω, Low - Batt
  • Test voltage: 100V DC (stabilized)
  • Weight: 2.3Kg
  • Electrode: natural rubber, carbon filled, d=63mm, replaceable

13S-4051 : Device incl. test certificate, operating manual, 2.5m test lead, 9V battery and carry case.


17S-C4050 : Calibration




Electrostatic Fieldmeter

Statiron DZ4

A handy, precise field strength meter for measuring charges on packaging, enclosures, operating equipment, monitors, etc. The device can also be used for testing ionizers.

  • LCD display
  • Measuring range: ±0.01 to ±19.99kV
  • Measuring accuracy: ±10%
  • Optical LED-Distance indication (30mm)
  • Hold-Function
  • Rotary sensor head (180° / in 45° steps)


Code: 13S-DZ4 : Field meter with test certificate, carry case and battery

13S-DZ4-CP : Plate for Ion Balance measuring

17S-CFM       : Calibration.

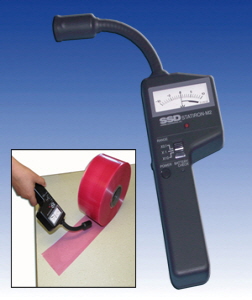

Statiron M2

The Statiron M2 is a precision field measuring device that operates on the field mill principle. With its small, swan-neck-mounted measuring head,


it allows reliable measurements even in confined spaces. Its large measuring range (up to 100KV) makes this field meter ideal for all industrial environments.

  • Analog display
  • Measuring range: 0.00 to ±100KV
  • Measuring tolerance: ±10%
  • Measuring head: Field mill principle, mounted on swan-neck
  • Measuring distance: 50mm
  • Includes test certificate, batteries and pouch


13S-M2 : Fieldmeter with certificate of test, carry case and battery

17S-CFM : Calibration.

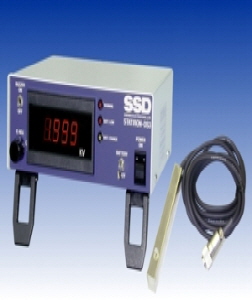

Statiron DS3

A precision field strength meter with an exceptionally compact measuring head for objects with small dimensions. Can also be used for continuous monitoring with adjustable alarm threshold.

  • Digital display
  • Measuring head: 12x18x93mm
  • Measuring tolerance: ±5%
  • Hold funktion with maximum value
  • Analog output: ±2V (1V ≈ 10kV)
  • Includes test certificate, batteries, PSU and carrying case


13S-DS3-A : Instrument with measuring head type A (0 - ±1999V, measuring distance 5mm)


13S-DS3-B : Instrument with Measuring head type B (0 - ±19.99KV, ,measuring distance 30mm)


17S-CFM : Calibration.






Model H 0601

Charged Plate Monitor for simple testing of ionizers and measuring discharging times of various test objects. This charged plate monitor allows testing with a fixed decay time (±1000V - ±100V) and with a user-definable range between 0 and ±1000V.

  • Measuring tolerance: ±5%
  • Decay Time ±1000V - ±100V or user-definable
  • Plate: 150 x 150mm, 20pF
  • Analog output: ±2V (1V ≈ 10kV)Alarm output
  • Battery operation possible (takes 4 AA batteries)
  • Dimensions: 265 x 200 x 200mm
  • Weight: 2.4 kg







Charged Plate Monitor, Type Statiron DP

Handheld Charged Plate Monitor for the periodic testing of Ionizers (Decay time and Ion Balance). The 180° rotatry head allows fast and easy testing without moving the ionizers away from the working area.

  • Measuring accuracy: ±10%
  • Decay Time from ±1000V to ±100V
  • Dimensions: 71 x 174 x 31mm
  • Plate dimensions: 70x32mm
  • Capacity: 10pF
  • Weight: 240g


13S-DP :  Charged Plate Monitor with test certificate, carry case and battery


17S-CDT : Calibration.




Wrist strap and shoe tester  STATEST PERSONAL



The user friendly STATEST PERSONAL provides fast, reliable testing of wrist straps and ESD footwear to IEC 61340-5-1.

Three test programs are available:
 -wrist strap and footwear
 -footwear only
 -wrist strap only

If a test was positive, the device issues a unique control number. If the tested equipment fails the test, the device issues a visual and an acoustic warning and displays the cause of the fault.

Special features:

  • Counter for monitoring the number of performed tests
  • Floating contact (for example for door actuation)
  • Mounting plate quick reference guide.



Code :

13S4015 : Tester only (includes test certificate and PSU)

13S4015M :  Mounting Plate for wall mounting (Size: 250x220x5mm)


13S4015E : Footwear electrode (stainless steel plate)

17S-C401 :  Calibration.
