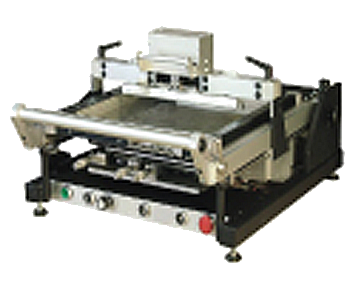

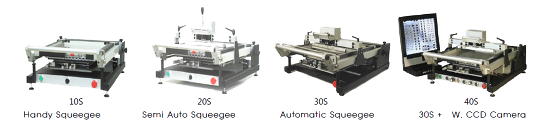

Autodrive stencil printer S30

 Technical data

• Frame size  : max. 550 x 470 mm
• Rapid tensioning frame  :  4 fold    another types of frames
• PCB size  :  max. 400 x 375mm<
• Printing area  :  max. 350 x 340 mm

 Programming

• print parameters adjustable by user panel
• programming of all others relevant print parameters via USB interface
• Squeegee drive
• electric drive control
• print speed 5-150mm/s
• freely programmable squeegee travel
• Squeegee changeover
• Automatic reversible dual squeegee
• Universal holders for metal or rubber blade
• adjustable squeegee inclination 0 - 60 °
• adjustable squeegee contact pressure 0 - 200 N
• Printing              :   Single or double-sided boards

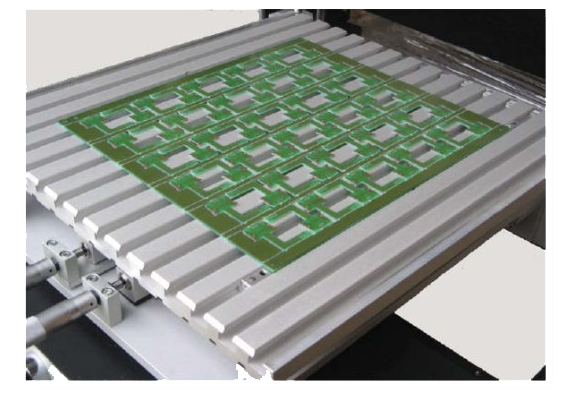

 Table lowering

• automatic table lowering  :   Z=10 mm
• lowering speed adjustable  :   0,2 - 4 mm/s
• adjustable table contact pressure   :    0 - 450 N
• Table - X, Y / Theta adjustment     :     +/- 12 mm / +/- 2,7°
• Off-Contact (Z-Axis) Range      :     0 -24 mm
• Table - adjustment accuracy   :     +/- 0,01 mm
• Supply   :     Compressed air 8 bar
• Dimensions and wight  :   860 x 650 x 380 mm / ca. 80 kg.

 Application Area

• suitable for small and medium volume production
• screen- or stencilprinting of glue, solder paste or another substances
• qualified for fine pitch components
• minimum pitch of pads 0,3mm

 Autodrive stencil printer

S30

 Technical data

1. Frame size       :  Max. 550 x 470 mm

2. Rapid tensioning frame  :  4 fold  another types of frames

3. PCB size          :  max. 400 x 375mm<

4. Printing area   :  max. 350 x 340 mm

 Programming

• print parameters adjustable by user panel
• programming of all others relevant print parameters via USB interface
• Squeegee drive
• electric drive control
• print speed 5-150mm/s
• freely programmable squeegee travel
• Squeegee changeover
• Automatic reversible dual squeegee
• Universal holders for metal or rubber blade
• adjustable squeegee inclination 0 - 60 °
• adjustable squeegee contact pressure 0 - 200 N
•  Printing              :   Single or double-sided boards

 Table lowering

1. automatic table lowering       :   Z=10 mm

2. lowering speed adjustable     :   0,2 - 4 mm/s

3. adjustable table contact pressure   :    0 - 450 N

4. Table - X, Y / Theta adjustment     :     +/- 12 mm / +/- 2,7°

5. Off-Contact (Z-Axis) Range     :     0 -24 mm

6, Table - adjustment accuracy   :     +/- 0,01 mm

7. Supply       :     Compressed air 8 bar

8. Dimensions and wight  :   860 x 650 x 380 mm / ca. 80 kg.

 Application area

• suitable for small and medium volume production
• screen- or stencilprinting of glue, solder paste or another substances
• qualified for fine pitch components
• minimum pitch of pads 0,3mm
