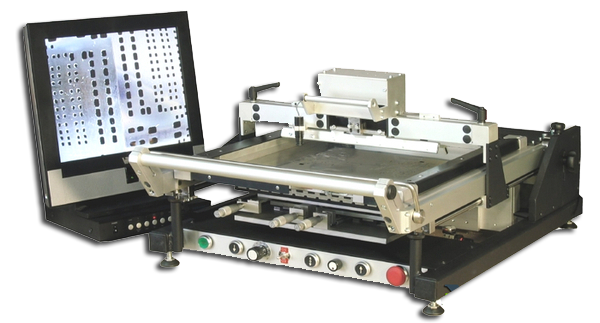

Autodrive stencil printer

        Technical data

• Frame size      :    max. 550 x 470 mm
• Rapid tensioning frame  :  4 fold another types of frames may be accepted
• PCB size          :    max. 400 x 375mm
• Printing area   :    max. 350 x 340 mm
• Visionsystem  :    Integrated 2 CCD cameras LCD monitor.

           Programming

• print parameters adjustable by user panel
• programming of all others relevant print parameters via USB interface

          Squeegee drive

• electric drive control
• print speed 5-150mm/s
• freely programmable squeegee travel.

          Squeegee changeover

• Automatic reversible dual squeegee
• Universal holders for metal or rubber blade
• adjustable squeegee inclination 0 - 60 °
• adjustable squeegee contact pressure 0 - 200 N

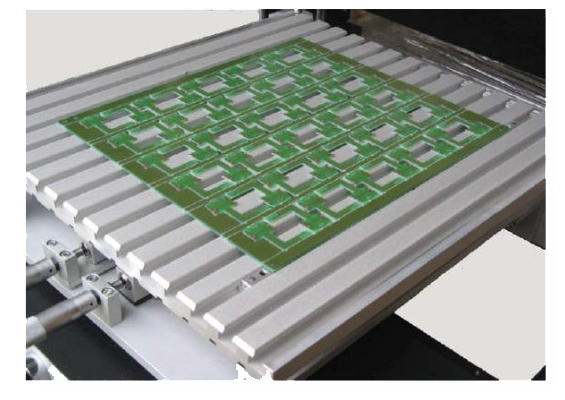

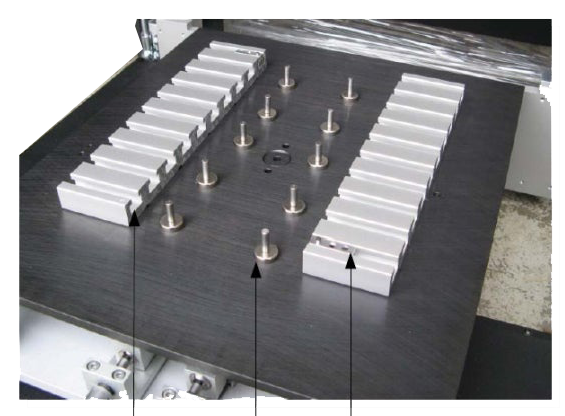

• Printing                 :   Single or double-sided boards
• Table lowering    :    automatic table lowering / Z=10 mm
• lowering speed adjustable              :  0,2 - 4 mm/s
• adjustable table contact pressure   :  0 - 450 N
• Table - X, Y / Theta adjustment   :  +/- 12 mm / +/- 2,7°
• Off-Contact (Z-Axis) Range          :   0 -24 mm
• Table - adjustment accuracy       :   +/- 0,01 mm

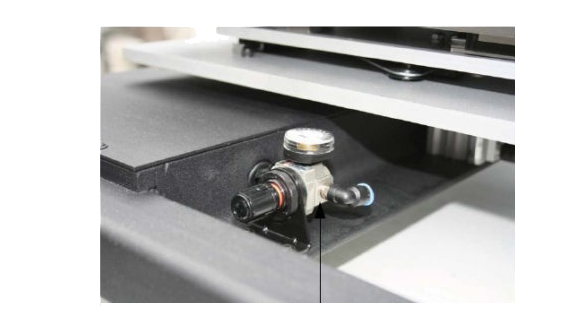

• Supply   :    Compressed air 8 bar
• Dimensions and wight    :   860 x 650 x 380 mm / ca. 85 kg.

          Application area

• suitable for small and medium volume production
• screen- or stencilprinting of glue, solder paste or another substances
• qualified for fine pitch components
• minimum pitch of pads 0,3mm.
